Easy Do It Yourself GPS Install


GPS DEVICE FMT100



  • The FMT100 is a small, smart and waterproof GPS tracker you can install in a couple of minutes.

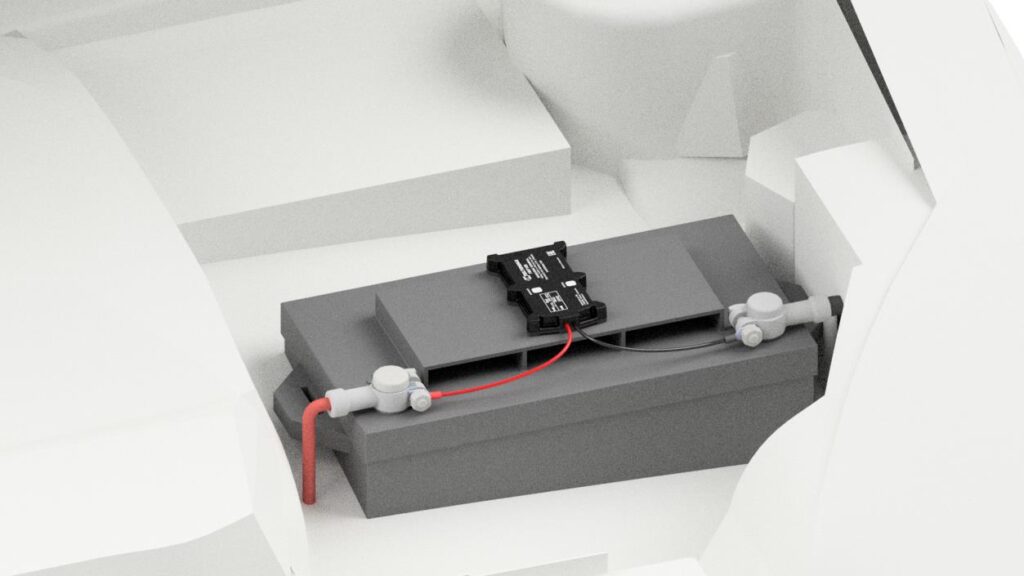

  • Biggest in its class internal High Gain GPS/GNSS antenna allows mounting directly on boat battery inside the boat.

  • FMT100 is equipped with special clamp connector for fast power cable connection to the boat battery, has a solid waterproof case and built-in accelerometer & gyroscope sensors.

  • The FMT100 is using Quad-band 2G GSM:  900/1800 MHz; 850/1900 MHz to communicate GPS positions to our servers.

  • When it is out at sea with no GSM signal, it will SAVE all positions in a large internal memory, and will transmit when will re-connect to GSM signal.

  • Has low power consumption, can monitor battery voltage and send alerts when falls below a set up value.

  • During winter or non-operational periods, system can be configured for Yacht alarm anti-theft notifications.

  • The main purpose of the internal battery is to send an alert if the GPS is disconnected from the boat battery (because of a possible security incident) and to transmit location for  some time after that (up to 1 day depending on the power saving mode it was set up).

Buy Now

Technical details:

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Input voltage range 10 – 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption At 12V < 4.5 mA (Ultra Deep Sleep)
At 12V < 6 mA (Deep Sleep)
At 12V < 9 mA (Online Sleep)
At 12V < 11 mA (GPS Sleep)
At 12V < 26 mA (nominal)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
GNSS antenna Internal High Gain
Cellular antenna Internal GSM High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 92,5 x 57,6 x 14 mm (L x W x H)
Weight 63 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP65
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer and gyroscope
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring OBDII dongle
Ignition detection Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
CERTIFICATION & APPROVALS
Regulatory CE/RED, EAC, REACH, RoHS
